| Plaats van herkomst: | Guangdong, China |
|---|---|
| Merknaam: | BENRAY |
| Certificering: | CE, ISO |
| Modelnummer: | ECG-12 |
| Min. bestelaantal: | 1 set |
| Prijs: | USD 500-1200 / Set |
| Verpakking Details: | Exportkarton met schokbestendige schuimbescherming |
| Levertijd: | Heb voorraad |
| Betalingscondities: | T/T,L/C,Western Union |
| Levering vermogen: | 500 sets per maand |
| Kanalen: | 12 kanaal | Leiding Verwerving: | 12 gelijktijdige leads |
|---|---|---|---|
| Scherm: | 10,2-inch kleurentouchscreen | Oplossing: | 12 bit / 1000 Hz |
| Frequentierespons: | 0,05 Hz - 500 Hz | CMRR: | ≥100dB met AC-filter |
| Kalibreren van spanning: | 1mV ±3% | Ingangsimpedantie: | > 50 MΩ |
| Tijd constante: | >3,2s | Spanningstolerantie: | ±500mV |
| Ingangscircuitstroom: | ≤0,1μA | Huidige lekstroom patiënt: | <10μA |
| Geluidsniveau: | ≤15μVp-p | Bedrijfsmodus: | Handmatig / Automatisch / Ritme |
| EMG filter: | 25 Hz / 35 Hz / 45 Hz / UIT | Driftfilter: | 0,05 / 0,1 / 0,2 / 0,5 Hz |
| Laagdoorlaatfilter: | 150 Hz / 100 Hz / 70 Hz | Gevoeligheid: | 5 / 10 / 20 mm/mV |
| Document snelheid: | 12,5 / 25 / 50 mm/s (±2%) | Recorder: | Thermische printer met hoge resolutie, 216 mm papier |
| Intern geheugen: | Meer dan 400 ECG-rapporten | Batterij: | Ingebouwde oplaadbare Li-ion 14,8 V / 4000 mAh |
| Voeding: | 100-240 V, 50/60 Hz AC/DC | Gegevensinterface: | USB, RS232, LAN, SD-kaart |
| Veiligheid: | Defibrillatiebescherming, pacemakerdetectie | ||
| Markeren: | 12 Channel Simultaneous ECG Acquisition,10.2 Inch Color Touchscreen Display,Portable Defibrillation Protection ECG Machine |
||

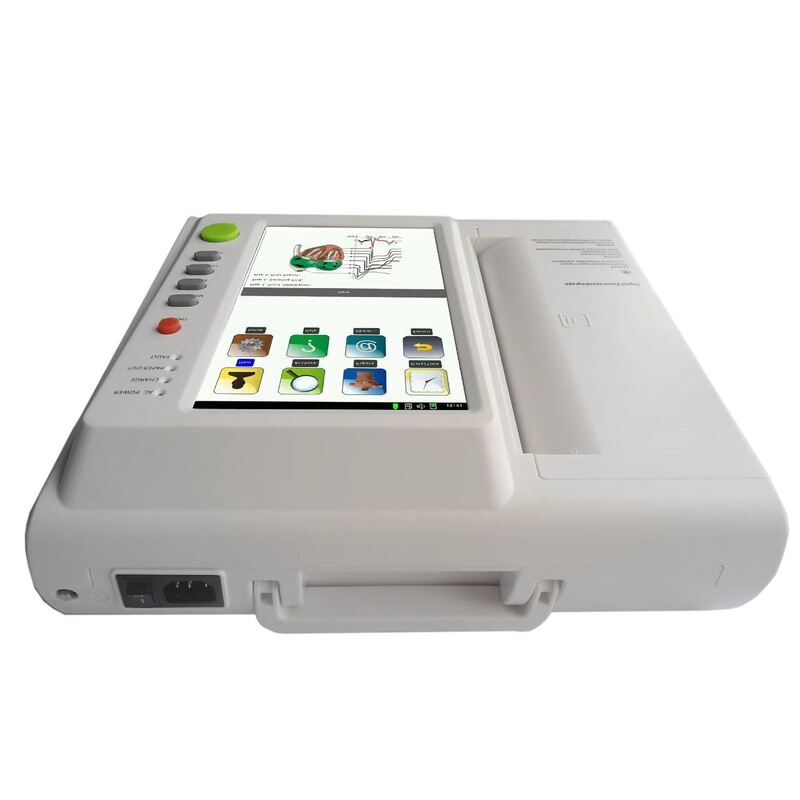

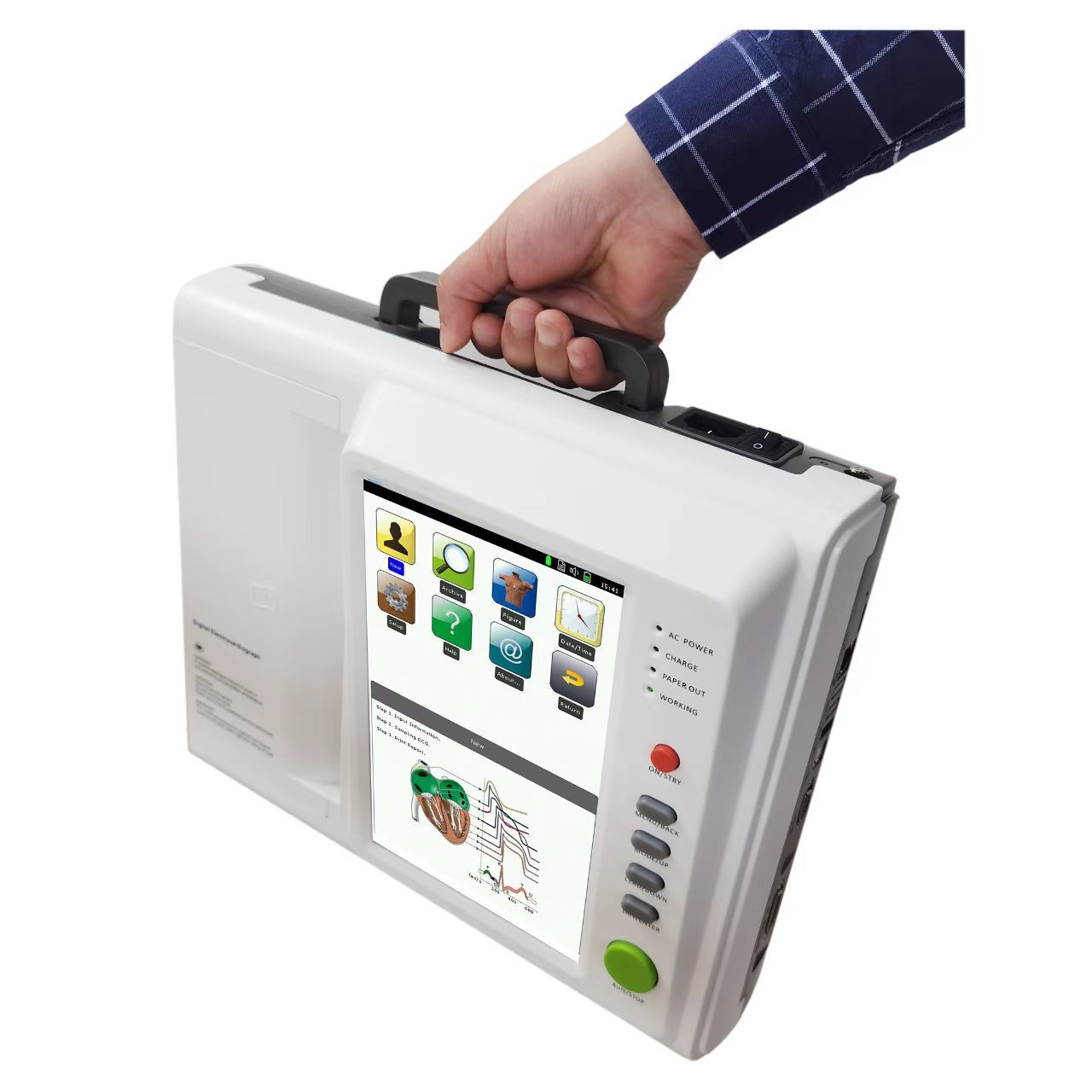

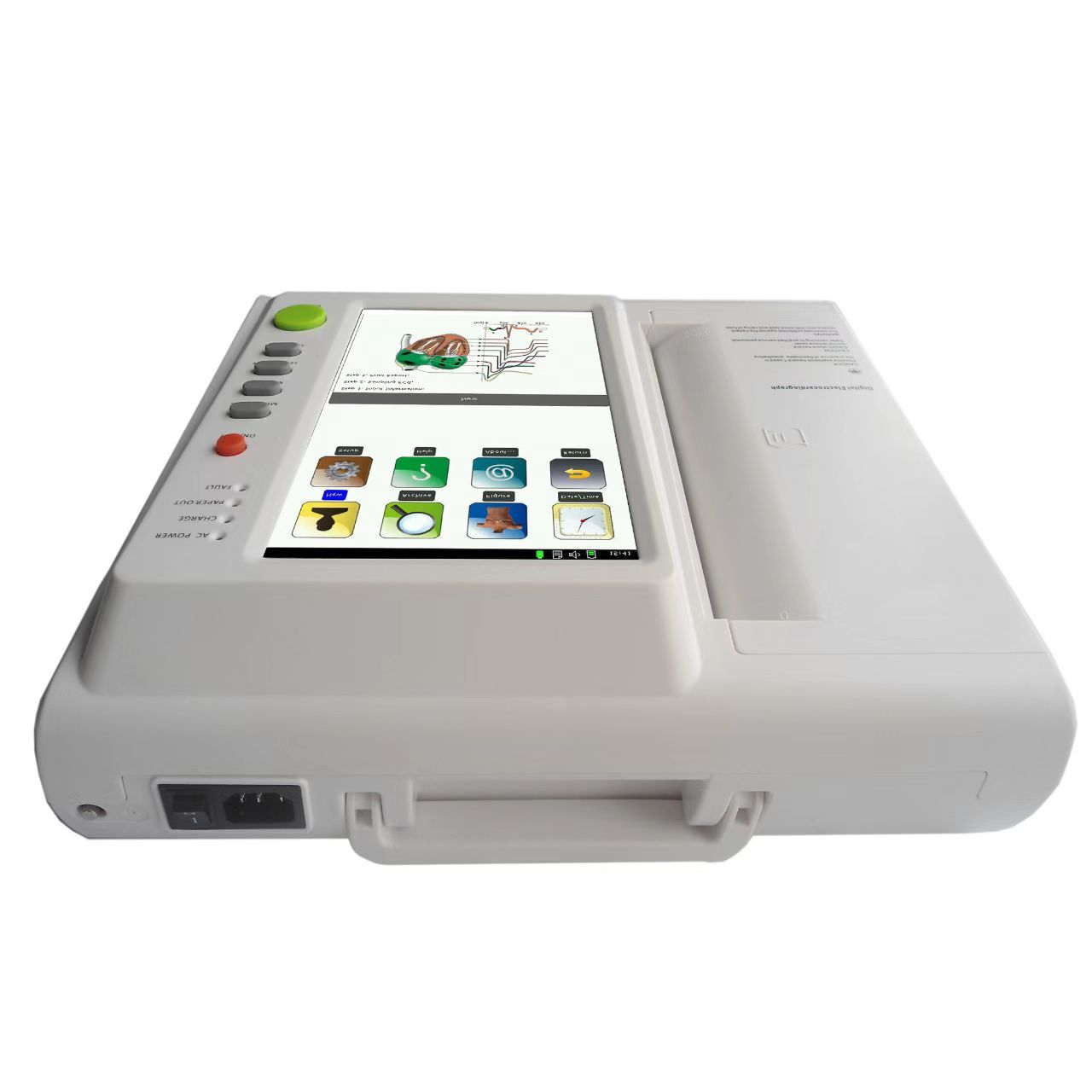

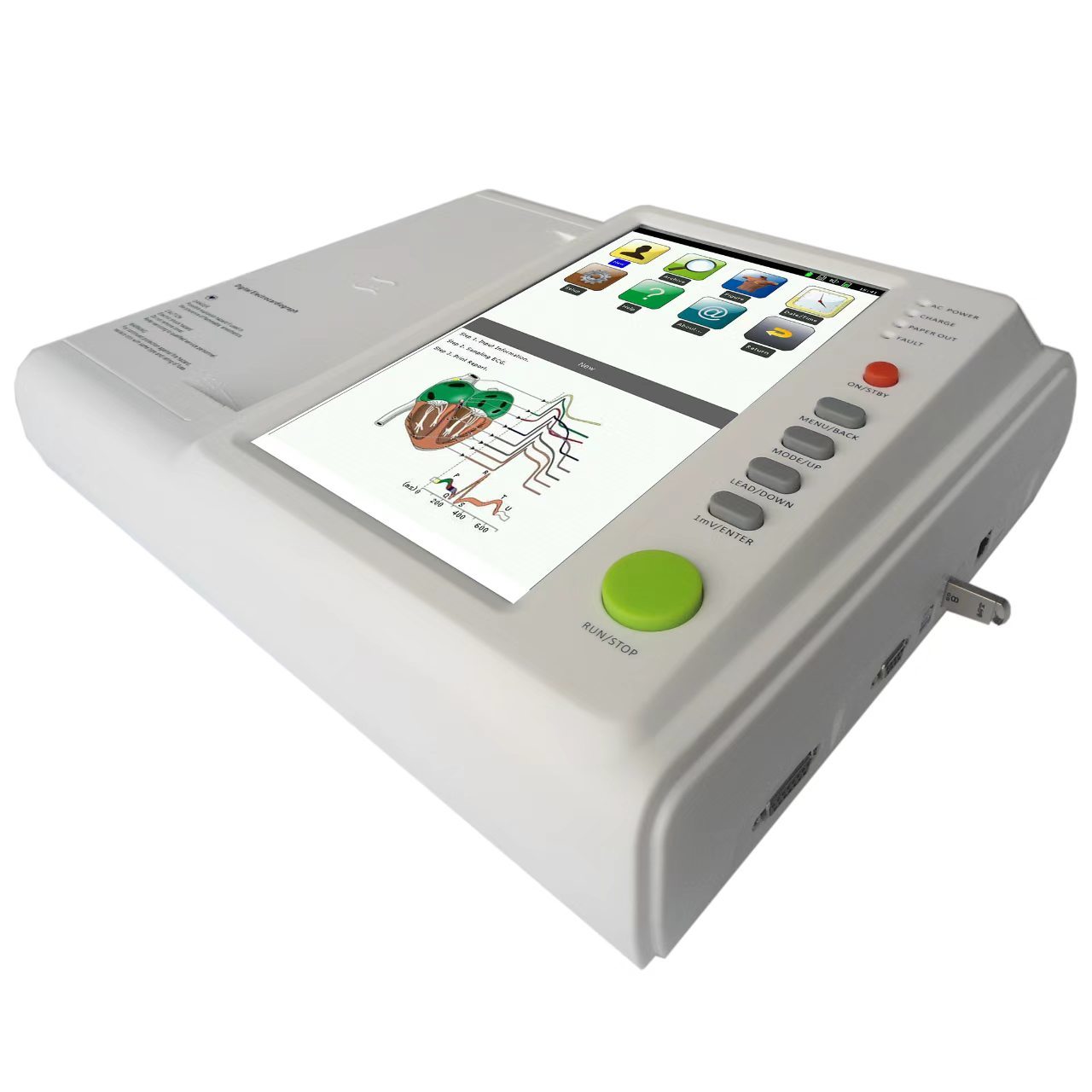

ECG-12 12 Channel Portable ECG Machine ECG-12 is a 12 channel portable electrocardiograph designed for accurate and efficient cardiac assessment. It acquires 12 leads simultaneously and displays the full 12 channel ECG waveforms on a 10.2 inch color touchscreen. With built-in thermal printer, rechargeable battery, defibrillation protection and pacemaker detection, it suits hospitals, clinics, emergency rooms and health screening centers. Key Features Simultaneous acquisition
